Disyuntor universal

ZUW1 disyuntores de aire de tipo fijo
  • ZUW1 disyuntores de aire de tipo fijo

ZUW1 disyuntores de aire de tipo fijo

En el sitio de montaje, la humedad relativa no excede el 50% a la temperatura máxima de + 40 ° C,
Se permite una humedad relativa más alta a una temperatura más baja,
La HR puede ser del 90% a + 20 ° C, se deben tomar medidas especiales para la aparición de rocío;
Los productos cumplen con las normas IEC60947-1, IEC60947-2.

Detailed introduction

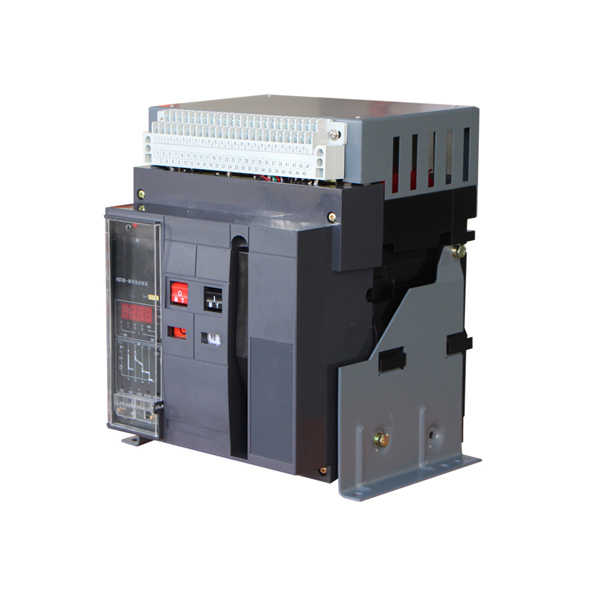

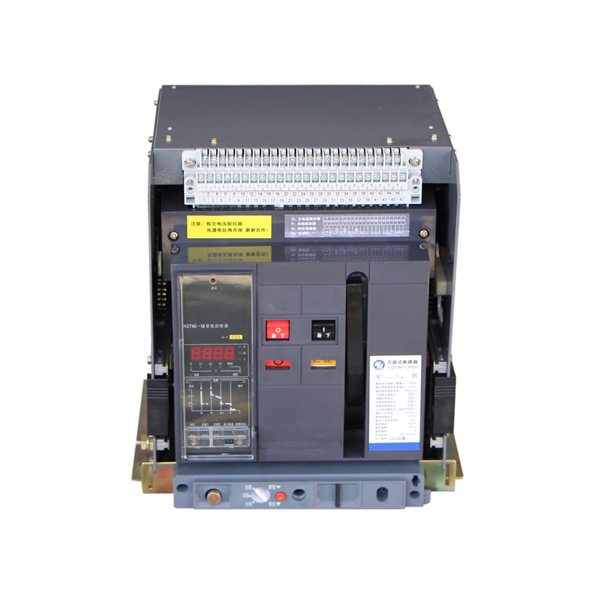

ZUW1 fixed type air circuit breakers

ZUW1 Circuit Breaker universal

Los disyuntores de aire inteligentes ZYW1 (en lo sucesivo denominados ACB) se aplican para el circuito de red de CA 50Hz, voltaje nominal 400V, 690V y corriente nominal entre 630A y 6300A. Se utiliza principalmente para distribuir energía y proteger el circuito y el dispositivo de suministro de energía contra cortocircuitos, subtensión, falla a tierra monofásica, etc. El ACB tiene una función de protección inteligente y las partes clave adoptan una liberación inteligente. El lanzamiento puede hacer la protección selectiva precisa, lo que puede evitar cortar la energía y mejorar la fiabilidad de la fuente de alimentación. Los productos cumplen con las normas IEC60947-1, IEC60947-2.
2. Condiciones de operación
2.1 Condiciones de temperatura: -5 ° C ~ 40 ° C; el valor promedio dentro de las 24 h no debe exceder los + 35 ° C (se excluye la situación especial)
2.2 Altitud: ≤2000m;
2.3 Grado de contaminación: Grado 3;
2.4 Condiciones del aire:
En el sitio de montaje, la humedad relativa no excede el 50% a la temperatura máxima de + 40 ° C, se permite una humedad relativa más alta a una temperatura más baja,
La HR puede ser del 90% a + 20 ° C, se deben tomar medidas especiales para la aparición de rocío;

Parámetro técnico principal

Type   YCW1-2000 YCW1-3200 YCW1-6300
Pole   3P, 4P 3P, 4P 3P, 4P
Using category   B B B
Rated current In A 630, 800, 1000 1250, 1600, 2000 2000, 2500, 3000 4000, 5000, 6300
Rated frequency Hz 50 50 50
Rated operation voltage Ue V 400, 690 400, 690 400, 690
Rated insulation voltage Ui V 800 800 800
Arcing distance mm 0 0 0
Rated impulse withstanding voltage Uimp   V 8000 8000 8000
Rated operation short circuit breaking capacity Ics (O-t-CO) 400V kA 50 80 100
690V kA 40 50 75
Rated limiting short circuit breaking capacity Icu (O-t-CO) 400V kA 80 100 120
690V kA 50 65 85
Rated short circuit closing capacity Icm 400V kA 176 220 264
690V kA 105 143 187
Rated short time withstanding current Icw (O-t-CO, AC400V 0.4S) 400V kA 50 65 85
Operation life Per hour times 20 20 10
Electrical times 1000 500 500
Mechanical times 10000 5000 5000
Full breaking time   ms 20~30 20~30 20~30
Full closing time   ms 55~70 55~70 55~70
Power consumption 3P W 360 1200 2000
4P W 450 1750 2300
Resistance of each pole Fixed type μΩ 11 9 -
Draw out type μΩ 20 14 10
Dimensions (L×W×H) 3P fixed type mm 362×323×402 422×323×402
3P draw out type mm 375×461×452 435×471×452
4P fixed type mm 457×323×402 537×323×402
4P draw out type mm 470×461×452 550×471×452
Approximate weight 3P fixed type kg 41 55
3P draw out type kg 71 95 245
4P fixed type kg 51.5 65 -
4P draw out type kg 86 115 260

Datos de protección contra sobrecarga

Overload protection YCW1-2000~6300
Adjust scope Ir1   (0.4-1)In (pole difference 2%)
1.05 Ir1 h ≥2h non-tripping
1.3 Ir1 h ≤1h tripping
Delay time tr1 when current is 2.0 In s 3.32, 5.32, 8.00, 13.3, 20, 26.6, 33.3, 45, 60, 93.3, 133, 200, 266, 333, 400, 433
Delay time tr1 when current is 3.0 In s 1.25, 2, 3.5, 7.5, 10, 12.5, 16.8, 22.5, 35, 50, 75, 100, 125, 150, 162
Accuracy % ±10
Short circuit, short time delay
Adjust scope Ir1 Ir2 (0.4-15)In (pole difference 2%)
Delay time tr2 ms 100, 200, 300, 400
Accuracy % ±10

Característica de controlador inteligente

    Overload long time-delay anti-time limit protection
Short circuit short time-delay anti-time limit protection
Short circuit short time-delay timing protection
Short circuit instantaneous protection
Insulate earth fault protection

Accesorios electricos

Under-voltage release Rated working voltage Ue(V) AC400 AC230
Acting voltage (V) (0.35~0.7) Ue
Reliable close voltage (V) (0.85~1.1) Ue
Non close voltage (V) ≤0.335Ue
Power loss 12VA (YCW1-1000 5VA)
Shunt release Rated control power voltage Us(V) AC400 AC230 DC220 DC110
Acting voltage (V) (0.7~1.1) Ue
Open time 40VA 40W (YCW1-1000 5VA)
Power loss less than 30ms
Close electromagnetic iron Rated control power voltage Us(V) AC400 AC230 DC220 DC110
Acting voltage (V) (0.85~1.1) Ue
Open time 40VA 40W (YCW1-1000 5VA)
Power loss less than 70ms
Motor operating device Rated control power voltage Us(V) AC400 AC230 DC220 DC110
Acting voltage (V) (0.85~1.1) Ue
Open time 40VA 40W (YCW1-1000 5VA)
Power loss less than 5s
